An in-depth analysis of Hook and Loop fastener’s fastening strength standards, covering ASTM D5170 Peel Strength, ASTM D5169 Shear Strength, ISO 22776 / 22777 Life Cycle, and washability tests to help supply chains improve the products durability and global compliance.

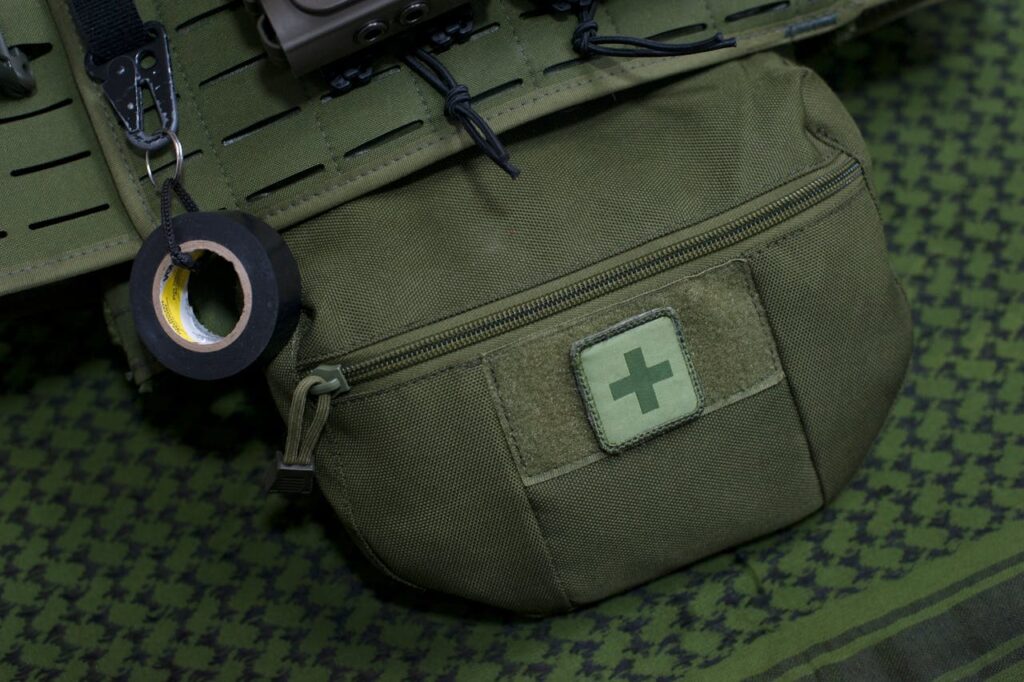

In apparel, medical braces, outdoor gear, industrial straps, and military applications, the performance of Hook and Loop depends not only on initial adhesion but also on stability after prolonged, repeated use. If the peel strength is insufficient, products may detach unexpectedly; if the shear strength is inadequate, slippage occurs under sustained load. Therefore, supply chains must establish comprehensive tensile strength testing and life cycle verification mechanisms to ensure products meet actual functional requirements.
Keywords: Hook and Loop, Peel Strength, Shear Strength, Fastening Tape Durability (Life cycle), ASTM D5170, ASTM D5169
Two Core Testing Standards for Hook and Loop Performance
The mechanical performance of Hook and Loop is primarily governed by two major international standards:
ASTM D5170 — Peel Strength
This standard measures the resistance to separation in a vertical direction—essentially the force required for a user to “peel” the hook and loop apart.
- Method: The test utilizes a Constant Rate of Extension (CRE) tensile testing machine to evaluate the resistance when the force is applied perpendicular to the separation line.
- Common Reference Values (For industry reference only):
- Standard Apparel: 1.0–1.5 N/cm
- Industrial Grade: 1.5–2.0 N/cm
- Military Grade: ≥ 2.0 N/cm
ASTM D5169 — Shear Strength
ASTM D5169 measures the load-bearing capacity parallel to the plane of the fasteners. This determines whether the Hook and Loop will slide or shift when fastened for long periods.
- Method: This test is the critical benchmark for assessing resistance to separation under parallel tension.
- Recommended Reference Values (For industry reference only):
- General Products: 14–18 N
- Medical / Industrial: 18–25 N
- High-Load Securing: ≥ 25 N
Comparison Table of International Testing Regulations for Hook and Loop
| Test Item | International Standard | Technical Application | Recommended Reference Value* |
|---|---|---|---|
| Peel Strength | ASTM D5170 | Vertical separation resistance | 1.0–2.0 N/cm |
| Shear Strength | ASTM D5169 | Parallel load-bearing capacity | 14–25 N |
| Life Cycle (Shear) | ISO 22776 | Shear retention after repeated opening/closing | ≥ 5,000 cycles |
| Life Cycle (Peel) | ISO 22777 | Peel retention after repeated opening/closing | ≥ 5,000 cycles |
| Wash Shrinkage | ISO 5077 | Dimensional change after washing | ±3% |
| Color Fastness | ISO 105-C06 | Fading and staining after washing | Grade 4 or above |
*Note: The above standards and data are common industry reference values; actual specifications should be adjusted based on specific brand technical standards.
ISO 22776 / ISO 22777 Life Cycle Testing
Beyond a single tensile test, the supply chain prioritizes Life Cycle testing. These two ISO standards correspond to:
- ISO 22776: Shear strength after repeated opening and closing.
- ISO 22777: Peel strength after repeated opening and closing.
Simulated Failure Modes:
- Long-term use fatigue.
- Hook surface abrasion (hook deformation).
- Loop surface damage (fiber pull-out or breakage).
- Strength decay rate.
Recommended Cycle Counts:
- General Apparel: 3,000–5,000 cycles.
- Industrial Grade: 10,000+ cycles.
Hook and Loop Wash Shrinkage and Color Fastness Testing
For applications in apparel and washable equipment, the following tests should be integrated:
ISO 5077 — Wash Shrinkage
Evaluates dimensional stability after laundering.
- Control Target: Length shrinkage ≤ ±3%; Width shrinkage ≤ ±3%.
ISO 105-C06 — Color Fastness to Washing
Evaluates:
- Fading (color change).
- Staining (transfer to adjacent fabrics).
- Appearance after washing.
- Requirement: Grade 4 or higher is recommended.
Hook and Loop Product Performance Comparison Table
| Evaluation Item | Standard Hook and Loop | Industrial High-Durability Hook and Loop |
|---|---|---|
| Peel Strength | Medium-High | High |
| Shear Strength | Medium | High |
| Life Cycle | 3,000–5,000 cycles | 10,000+ cycles |
| Wash Shrinkage | ±3% | ±2% |
| Color Fastness | Grade 3–4 | Grade 4–5 |
| Applicable Industries | Apparel / Footwear | Industrial / Medical / Military |
ISO 9001 and ISO 14000 Quality Management
Suppliers equipped with an ISO 9001 Quality Management System can effectively control:
- Hook and Loop density.
- Consistency of tensile test results.
- Batch-to-batch stability.
Furthermore, ISO 14000 / ISO 14001 certification ensures:
- Environmental compliance in dyeing and finishing.
- Alignment with ESG (Environmental, Social, and Governance) procurement standards.
- Sustainable supply chain management.
Illume Ltd. provides professional adhesion strength testing standards and supply chain management services for Hook and Loop (Touch Fasteners), helping your products meet global inspection standards (Fees apply).
References
- ASTM D5170 — Standard Test Method for Peel Strength of Hook and Loop Touch Fasteners
- ASTM D5169 — Standard Test Method for Shear Strength of Hook and Loop Touch Fasteners
⚠️ Note: The testing methods and data mentioned in this article are intended for common industrial reference. Actual specifications must be confirmed based on product design, intended use, and specific brand technical standards.
